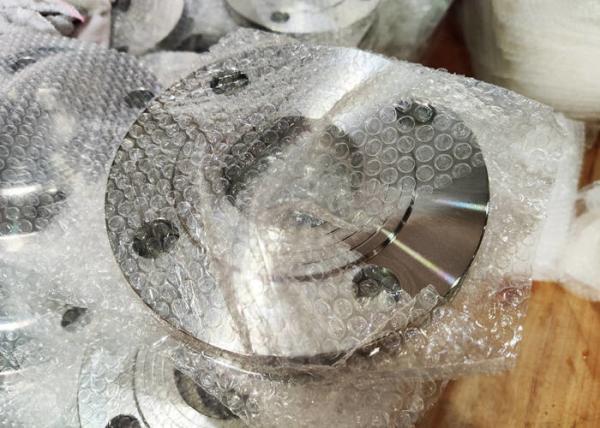

DN50(2")-Welding Neck Flange WN CL600 RF SMOOTH SCH 10S DUPLEX SS ASTM A182 F53 F60 SOUR SERVICE ASME B16.5

F53 duplex stainless steel is 2507 duplex stainless steelUNS S32750.

Product name: 2507 Duplex SteelUNS S32750

Common name: 2507, UNS S32750, NAS 74N, F53, W.-Nr. 1.4410

Executive standard: ASTM A240/ASME SA-240, ASTM A276, ASTM A182/ASME SA-182, ASTM A312/ASMES A312

Main components: carbon (C) ≤0.03, manganese (Mn) ≤2.0, nickel (Ni) 4.5～6.5, silicon (Si) ≤1.0, chromium (Cr) 21.0～24.0, molybdenum (Mo) 2.5～3.5, nitrogen ( N) 0.08～0.20

Physical properties: 2507 Duplex steel Density: 8.03g/cm3, Melting point: 1300-1390°C, Magnetic: None

Heat treatment: Insulation between 1000-1052℃ for 1-2 hours, rapid air cooling or water cooling.

Mechanical properties: tensile strength: σb≥795Mpa, yield strength σb≥550Mpa: elongation: δ≥15%, hardness ≤310 (HB)

Products range:

Use environment:

The higher chromium and molybdenum content of 2507 dual-phase steel makes it have strong resistance to organic acids such as formic acid and acetic acid. 2507 dual-phase steel also has strong corrosion resistance to inorganic acids, especially those containing chlorides. Compared with 904L, 2507 duplex steel has stronger corrosion resistance to diluted sulfuric acid mixed with chloride ions. 904L is an austenitic alloy, designed to resist pure sulfuric acid corrosion. 316L can not be used in hydrochloric acid environment, it may be subject to local corrosion or overall corrosion. 2507 duplex steel is used in diluted hydrochloric acid environment, and has strong resistance to pitting corrosion and crevice corrosion.
Application areas:
Petroleum and natural gas industry equipment; offshore platforms, heat exchangers, underwater equipment, fire fighting equipment; chemical processing industry, utensils and pipeline industry; desalination, high-pressure RO equipment and submarine pipelines; energy industry such as power plant desulfurization and denitrification FGD system, industrial scrubbing system , Absorption tower; mechanical parts (high-strength, corrosion-resistant, wear-resistant parts).

"Zheheng Steel" is a young diversified import and export enterprise in China, dedicated to providing high-end pipe fittings and solutions to the world, our factory (Zhejiang Kindly Pipe Fittings Company) is an old brand with more than 30 years of production experience , we have been able to independently provide reliable and e stainless steel and nickel alloy products to customers around the world. To achieve one-stop service from procurement-production-sales-after-sales. it is also positioned in the mid-to-high-end market. With strict quality requirements and perfect customer customization, more than 60% of the company's products have been sold to Northern Europe, North and South America, Taiwan, and about 40% since its establishment. Some products have been served by PetroChina, Sinopec, China National Nuclear Corporation.

The company has passed the ISO9001 certification of comprehensive quality management system, ISO14000 certification of environmental management system, OHSAS18000 certification of occupational ety and health management system; obtained special equipment manufacturing license [A1, A2 (1), B (2) level] , AD2000-W0 pressure equipment material certification of German TUV, PED 97/23 / EC EU pressure equipment material certification, Russian RTN and GOST certification; successively passed China (CCS), United States (ABS),

Germany (GL), Approved by the National Bureau of Shipping (LR), Norway (DNV), South Korea (KR) and other national classification societies.

"zheheng steel" produces and supply stainless steel 45 ° / 90 ° / 180 ° elbows, equal tees, reducer tees, crosses, concentric reducers, eccentric reducers, caps, flanges, flanges, etc., Non-standard pipe fittings are also produced according to customer requirements. The company strictly implements ASTM B16.9 / B16.5,ASTM A403 SH3408, SH3409, DIN2605, EN10253, BS1965, JISB2312 and other standards for production. The materials used are special steel materials such as 304H, 304L, 321H, 316L, 317L, 310S and duplex steel 2205/31803, 904L, WP347H, WP316Ti.

Available size range:

Outer diameter seamless (SMLS): 1/2 "-20", DN15-DN500, butt welding elbow (seam): 1/2 "-48", DN15-DN1200
Wall thickness: 1mm--60mm .SCH5S -SCHXXS

Material:
Stainless steel national grades: ASTM A403 WP304, 304L, 316, 316L, 321, etc.
European stainless steel grades: 1.4301, 1.4306, 1.4401, 1.4404, 1.4571

Duplex Steel:F51/S31803,F53/S32750,F55/S32760,F59/S32520,F60/S32205,254SMO/1.4547
Nickel Alloy: ASTM / ASME S / B366 UNS N08020 | N04400 | N06600 | N06625 | N08800 | N08810 | N08825 | N10276 | N10665 | N10675 | , Inconel 600 | Inconel 601 | Inconel 625 | Inconel 706 | Inconel 718 | Inconel X-750, Monel 400 | Monel 401 | Monel R 405 | Monel K 500

Production standard:
ASME / AISI B16.9, B16.28, ASTM A403, MSS SP-43: SA182, ASME.B16.11, EN / 1092
DIN 2605, DIN2609, DIN2615, DIN2616, JIS B2311, JISB2312, JISB2313, BS4504, BS4504, BS1560, BS10

Surface treatment: rolling sand, sand blasting, pickling,
Packing: wooden box, according to customer requirements
Minimum order: 1 piece
Delivery time: 1-45 days after receiving the deposit, depending on the quantity required.
Third party inspection: BV, SGS, etc. accepted
Test: direct reading spectrometer, hydraulic tester, X-ray detector, ultrasonic flaw detector, magnetic particle detector, etc.
Certificate: ISO9001. Pressure pipeline certificate, production license, PED, etc.
Productivity: 1800 tons per year
Products are widely used in papermaking, shipbuilding, petroleum, chemical, power, bioengineering, natural gas, sewage, construction, medicine, food (dairy) and other industries.
