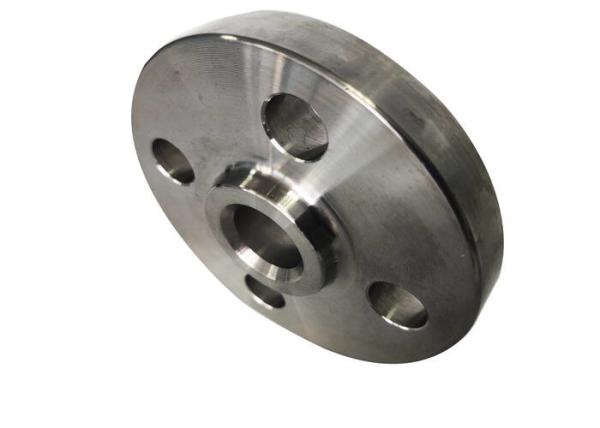

1.4301/1.4307 1.4541 stainless steel slip on flange RF forged (SO) PN16 PN40 EN1092-1

slip on flange (SO)is a flange with neck is a flange of flat welded steel pipe with neck.It is a flange that extends steel pipe and pi
pe fittingsinto flange and connects with equipment or pipeline through fillet weld.so flange is also a flange that extends
steel pipe and pipefittings into flange and connects equipment or pipeline through fillet weld like plate flange.

There are three kinds of forging flange sealing surfaces:

a,flat sealing surface is suitable for the environment whcih pressure is not high and media is non-toxic .

b,concave sealing surface is suitbale for the environment which pressure is slightly higher.

c,tongue and groove sealing surface is suitable for the environment which is flammable, explosive, and media is toxic, pressure is slightly high.

Products Range:

Detailed introduction of Stainless steel pipe slip on flange

Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .

Flange connection is connected of a pair of flanges, a gasket and some bolts and nuts, gasket is put among the two sealing surface of flanges, after fasten the bolts and nuts, when the specific pressure on the surface of gasket reach a certain value, gasket deforms, and fill the uneven place of sealing surface, make the connection tight without leakage.

"Zheheng Steel" is a young diversified import and export enterprise in China, dedicated to providing high-end pipe fittings and solutions to the world, our factory (Zhejiang Kindly Pipe Fittings Company) is an old brand with more than 30 years of production experience , we have been able to independently provide reliable and e stainless steel and nickel alloy products to customers around the world. To achieve one-stop service from procurement-production-sales-after-sales. it is also positioned in the mid-to-high-end market. With strict quality requirements and perfect customer customization, more than 60% of the company's products have been sold to Northern Europe, North and South America, Taiwan, and about 40% since its establishment. Some products have been served by PetroChina, Sinopec, China National Nuclear Corporation.

The company has passed the ISO9001 certification of comprehensive quality management system, ISO14000 certification of environmental management system, OHSAS18000 certification of occupational ety and health management system; obtained special equipment manufacturing license [A1, A2 (1), B (2) level] , AD2000-W0 pressure equipment material certification of German TUV, PED 97/23 / EC EU pressure equipment material certification, Russian RTN and GOST certification; successively passed China (CCS), United States (ABS),

Germany (GL), Approved by the National Bureau of Shipping (LR), Norway (DNV), South Korea (KR) and other national classification societies.

"zheheng steel" produces and supply stainless steel 45 ° / 90 ° / 180 ° elbows, equal tees, reducer tees, crosses, concentric reducers, eccentric reducers, caps, flanges, flanges, etc., Non-standard pipe fittings are also produced according to customer requirements. The company strictly implements ASTM B16.9 / B16.5,ASTM A403 SH3408, SH3409, DIN2605, EN10253, BS1965, JISB2312 and other standards for production. The materials used are special steel materials such as 304H, 304L, 321H, 316L, 317L, 310S and duplex steel 2205/31803, 904L, WP347H, WP316Ti.

Available size range:

Outer diameter seamless (SMLS): 1/2 "-20", DN15-DN500, butt welding elbow (seam): 1/2 "-48", DN15-DN1200
Wall thickness: 1mm--60mm .SCH5S -SCHXXS

Material:
Stainless steel national grades: ASTM A403 WP304, 304L, 316, 316L, 321, etc.
European stainless steel grades: 1.4301, 1.4306, 1.4401, 1.4404, 1.4571

Duplex Steel:F51/S31803,F53/S32750,F55/S32760,F59/S32520,F60/S32205,254SMO/1.4547
Nickel Alloy: ASTM / ASME S / B366 UNS N08020 | N04400 | N06600 | N06625 | N08800 | N08810 | N08825 | N10276 | N10665 | N10675 | , Inconel 600 | Inconel 601 | Inconel 625 | Inconel 706 | Inconel 718 | Inconel X-750, Monel 400 | Monel 401 | Monel R 405 | Monel K 500

Production standard:
ASME / AISI B16.9, B16.28, ASTM A403, MSS SP-43: SA182, ASME.B16.11, EN / 1092
DIN 2605, DIN2609, DIN2615, DIN2616, JIS B2311, JISB2312, JISB2313, BS4504, BS4504, BS1560, BS10

Surface treatment: rolling sand, sand blasting, pickling,
Packing: wooden box, according to customer requirements
Minimum order: 1 piece
Delivery time: 1-45 days after receiving the deposit, depending on the quantity required.
Third party inspection: BV, SGS, etc. accepted
Test: direct reading spectrometer, hydraulic tester, X-ray detector, ultrasonic flaw detector, magnetic particle detector, etc.
Certificate: ISO9001. Pressure pipeline certificate, production license, PED, etc.
Productivity: 1800 tons per year
Products are widely used in papermaking, shipbuilding, petroleum, chemical, power, bioengineering, natural gas, sewage, construction, medicine, food (dairy) and other industries.
