6'' 03X17H14M2 Sch40s Buttweld Concentric Reducer

Ask Lasest Price
Brand Name :	zheheng steel
Model Number :	1/2"inch-24"inch
Certification :	PED .TUV. ISO
Price :	1.5 USD/PCS--5280/PCS
Payment Terms :	L/C, T/T
Supply Ability :	ACCORDING TO CUSTOMER'S REQUEST
Delivery Time :	15-30days

Add to Cart

Product Details
Company Profile

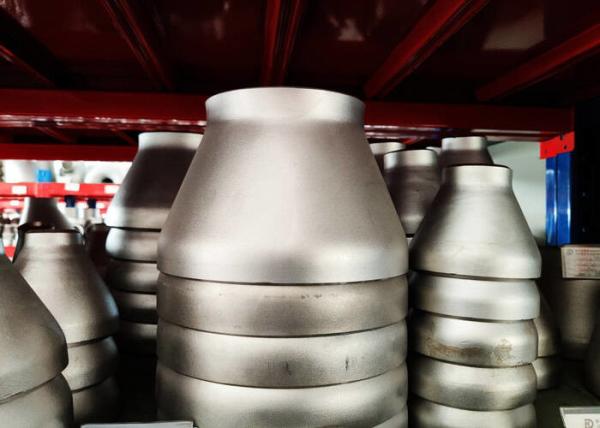

6'' 03X17H14M2 Sch40s Buttweld Concentric Reducer

GOST 08X18H10 / 03X18H11 / 08X17H13M2T / 03X17H14M2 Stainless Steel Butt-Welded Pipe Reducer

Products range:

Type	Elbow	30°, 45°, 60°, 90°, 180° (Return):
	Elbow	1D (short radius), 1.5D (long radius), 3D, 5D or large radius,etc
	Tee	Straght Tee / Equal Tee, Reduced tee, Y tee, lateral tee, etc.
	Cross	Straght Tee / Equal Tee, Reduced tee, etc.
	Reducer	Concentric, eccentric
	End Cap
	Stub End	Long type, Short type
Materials	Stainless steel	ASTM WP304/304L/316/316L
		UNS S30400/S30403/S31600/S31603
		JIS SUS304/304L/316/316L
		DIN 1.4301/1.4306/1.4401/1.4404
		GOST 08X18H10/03X18H11/08X17H13M2T/03X17H14M2
	Duplex steel	UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501 and etc.
Certificate		ISO 9001:2008, CE, TS
Criterion		ASME/ANSI B16.9;
		MSS SP-43;
		DIN 2605, 2609, 2615, 2616, 2617;
		JIS B2311 ,2312,2313;
		EN 10253;
Size	Seamless	1/2"-24", DN15 - DN600
Range	Welded	1/2"-48", DN15 - DN1200
Wall thickness		SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160,XXS and etc.
Surface Treatment		Pickling, Sand Rolling, Sand Blasting, Polishing, etc.
Application		Petroleum, chemical, machinery, boiler,electric power, shipbuilding, papermaking, construction, etc
Packing Method		Plywood Case or Pallet
Export to		Canada, Australia, USA, UAE, Malaysia, Vietnam, Philippines, etc.

Dimensions of Reducers

Nominal Pipe Size(NPS)	large end	small end	End-to-End, H	Nominal Pipe Size(NPS)	large end	small end	End-to-End, H
3/4"X1/2"	26.7	213	38	5X4	141.3	114.3	127
3/4"X3/8"	26.7	17.3	38	5 x 3-1/2"	141.3	101.6	127
1"X3/4"	33.4	26.7	51	5 x 3	141.3	88.9	127
1"X1/2"	33.4	21.3	51	5 x 2-1/2"	141.3	73	127
1-1/4"X 1"	42.2	33.4	51	5 x 2	141.3	60.3	127
1-1/4"X 3/4"	42.2	26.7	51	6X5	168.3	141.3	140
1-1/4"X 1/2"	42.2	21.3	51	6x4	168.3	114.3	140
1-1/2"X 1-1/4"	48.3	42.2	64	6 x	168.3	101.6	140
1-1/2"X 1"	48.3	33.4	64	6X3	168.3	88.9	140
1-1/2"X 3/4"	48.3	26.7	64	6 x 2-1/2"	168.3	73	140
1-1/2"X 1/2"	48.3	21.3	64	8x6	219.1	168.3	152
2"X 1-1/2"	60.3	48.3	76	8X5	219.1	141.3	152
2"X 1-1/4"	60.3	42.2	76	8X4	219.1	114.3	152
2"X 1"	60.3	33.4	76	8 x 3-1/2"	219.1	101.6	152
2"X 3/4"	60.3	26.7	76	10 x 8 .	273	219.1	178
2-1/2"X 2"	73	60.3	89	10 x 6	273	168.3	178
2-1/2"X 1-1/2"	73	48.3	89	10 x 5	273	141.3	178
2-1/2"X 1-1/4"	73	42.2	89	10 x 4	273	114.3	178
2-1/2"X 1"	73	33.4	89	12 x 10	323.8	273	203
3"X 2-1/2"	88.9	73	89	12 x 8	323.8	219.1	203
3"X 2"	88.9	60.3	89	12 x 6	323.8	168.3	203
3"X 1-1/2"	88.9	48.3	89	12 x 5	323.8	141.3	203
3"X 1-1/2"	88.9	42.2	89	14 X 12	355.6	323.8	330
3-1/2"X 3"	101.6	88.9 .	102	14 X 10	355.6	273	330
3-1/2"X 2-1/2"	101.6	73	102	14 X 8	355.6	219.1	330
3-1/2"X 2"	101.6	60.3	102	14 X 6	355.6	168.3	330
3-1/2"X 1-1/2"	101.6	48.3	102	16 x 14	406.4	355.6	356
3-1/2"X 1-1/4"	101.6	42.2	102	16 x 12	406.4	323.8	356
4"X 3-1/2"	114.3	101.6	102	16 x 10	406.4	273	356
4"X 3"	1143	88.9	102	16 x 8	406.4	219.1	356
4"X 2-1/2"	114.3	73	102	18 x 16	457	406.4	381
4"X 2"	114.3	60.3	102	18 x 14'	457	355.6	381
4"X 1-1/2"	114.3	48.3	102	18 x 12	457	323.8	381

"zheheng steel" is a professional pipe fittings,valves and flanges manufacturer and exporter for water treatment, construction, petrochemical and oilfield industry. We deliver exceptional value by providing customers with the most important elements : Premium Quality, Reasonable Price and Impeccable Services.
"zheheng steel" designs and builds a broad array of quality products in its ISO 9001 and CE manufacturing facility. Our products adhere to GB, JIS, DIN, DIN, EN, API, ANSI/ASME specifications for material content, pressure ratings and quality assurance, ensuring that our customers receive consistent quality and reliability every time. Additionally, we are able to modify existing products or manufacture new designs to meet specific requirements.
"zheheng steel" Pipeline's vision is to become the leading and foremost company in the pipeline fitting industry, and to be known as a company who always keeps our promise of quality products, reasonable pricing, and prompt delivery. By providing a broad range of high quality products at competitive prices, "zheheng steel" offers its customers a significant advantage in the industrial marketplace. We see ourselves not just as a supplier for our clients, but as their partner in helping them achieved their own goals and objectives.
